Compact Washing Plants

Integrated Hydrocyclone & Dewatering Technology

High-Efficiency Fines Recovery

REGENVIRO Compact Plants represent the peak of sand washing technology. By utilizing 5th-generation hydrocyclones from world-leading manufacturers, we achieve superior separation efficiency, ensuring more high-quality product is retained while minimizing dirt in the final sand.

Engineered for Longevity:

Advanced Pumping: Equipped with rubber-lined pumps featuring expeller glands for extended liner life.
Smart Sump Management: Integrated float systems maintain constant water levels, ensuring steady pump and hydrocyclone efficiency.
Durable Screening: Sloped back-panel design increases useful dewatering area. Side walls and bridges are backed by a 3-year structural warranty.
Easy Maintenance: Features replaceable UHMWPE side liners and standard WS85 dewatering panels.

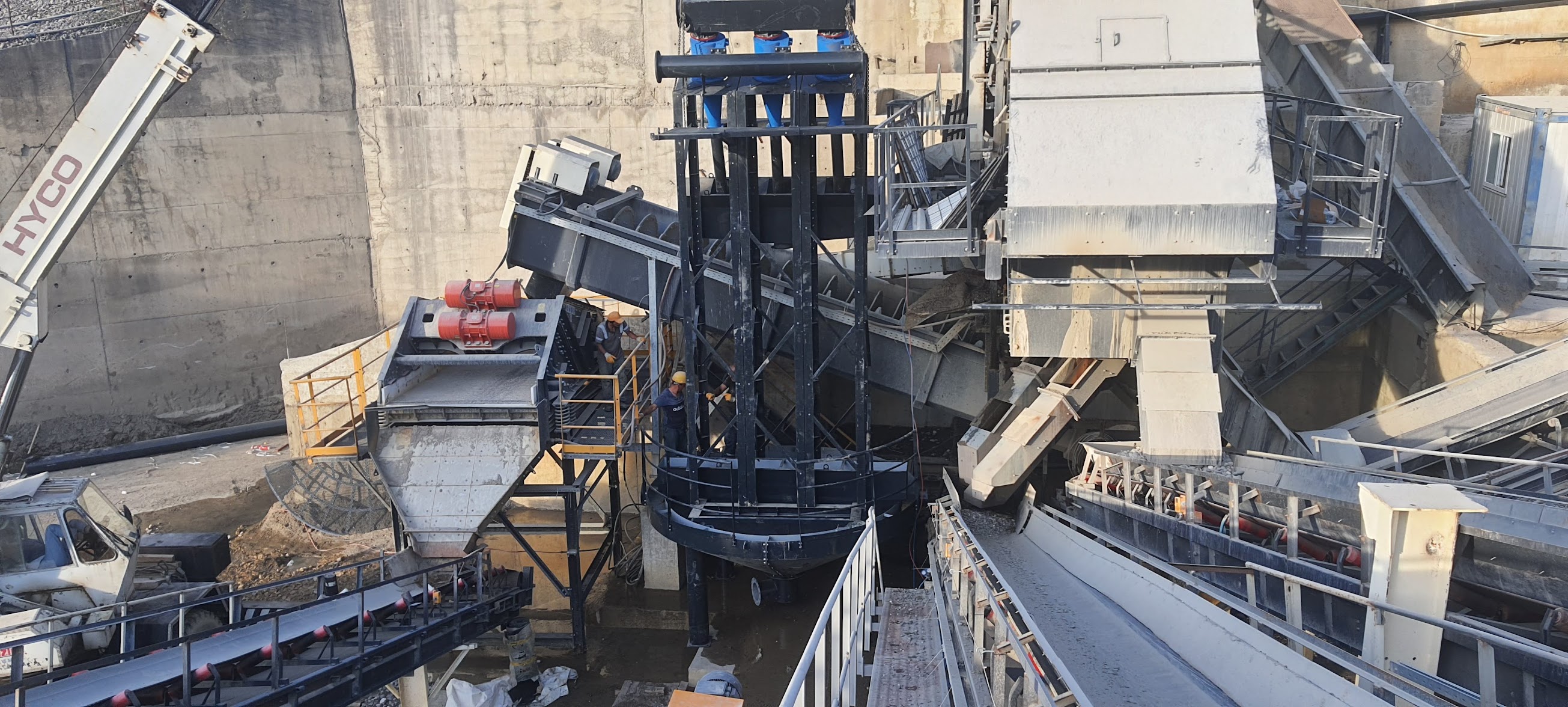

200 TPH Dewatering Plant.

Production Versatility: Two-Deck Options

Our Two-Deck screen configurations (WSCT series) offer unique operational flexibility:

Dual Fractions: Produce one coarse and one fine sand output simultaneously on a single machine.
Direct Feed Protection: Feed unscreened 0-25mm material directly to remove oversize parts, protecting the pump while manufacturing sand in one pass.

Technical Specifications

Model	Product Code	Description	Capacity (t/h)
C60-1	WSCC60-1	Standard Compact Washing Plant	60
C90-1	WSCC90-1	Standard Compact Washing Plant	90
C90DF	WSCC90DF	Dry Feed Compact Plant	90
C1301	WSCC1301	Standard Compact Washing Plant	130
C1302	WSCC1302	Two Product Compact Plant	130
C1801	WSCC1801	Standard Compact Washing Plant	180
C2501	WSCC2501	Standard Compact Washing Plant	250
C2502	WSCC2502	Two Product Compact Plant	250
T90-2	WSCT90-2	Two Deck Screen Compact Plant	90
T1302	WSCT1302	Two Deck Screen Compact Plant	130
