High Rate Thickeners

Rapid Water Recovery with Modular, Bolt-Together Engineering

Swift Installation & Long-Term Durability

REGENVIRO High Rate Thickeners are designed to solve the space and cost challenges of modern sites. Our bolted modular design minimizes on-site welding and allows for full installation within 15 days. Furthermore, these units require minimal concrete infrastructure compared to traditional settling solutions.

Standard Engineering Excellence:

  • Longevity: All units are hot-dip galvanized as standard to ensure maximum service life in abrasive environments.
  • Safety & Access: Standard integrated stairs provide safe access to the top static bridge for maintenance and monitoring.
  • Drive Precision: Electric drives utilizing planetary gearboxes provide high torque efficiency.
  • Advanced Protection: All models above 8m include a hydraulic rake lifting system that reacts automatically to inferred torque, preventing mechanical failure during heavy solids loading.
15m Thickener

15 m3 Thickener Processing 600 m3 Slurry and 60 ton of Solids

Siemens-Powered Automation

Every REGENVIRO thickener is controlled by a Siemens PLC and a Variable Frequency Drive (VFD). This system intelligently adjusts the height of the drive column based on real-time data, ensuring optimal sludge consistency and water clarity.

Standard Valving: Units include hand-driven isolation valves, discharge valves, and water inlets at the discharge cone as standard equipment.

Technical Specifications

Model Solids Capacity (t/h) Slurry Feed Capacity (m³/h) Drive Kit (kW) Standard Features
HRC0451002.2 kWBolted Design / Galvanized
HRC06102002.2 kWBolted Design / Galvanized
HRC08183503.0 kWHydraulic Rake Lift / Siemens PLC
HRC10285503.0 kWHydraulic Rake Lift / Siemens PLC
HRC12388504.0 kWHydraulic Rake Lift / Siemens PLC
HRC156515005.5 kWHydraulic Rake Lift / Siemens PLC

Available Options & Customization:

  • Underflow discharge pumps.
  • Feed inlet volume and mass flow sensors.
  • Underflow volume and mass flow sensors for precise density management.

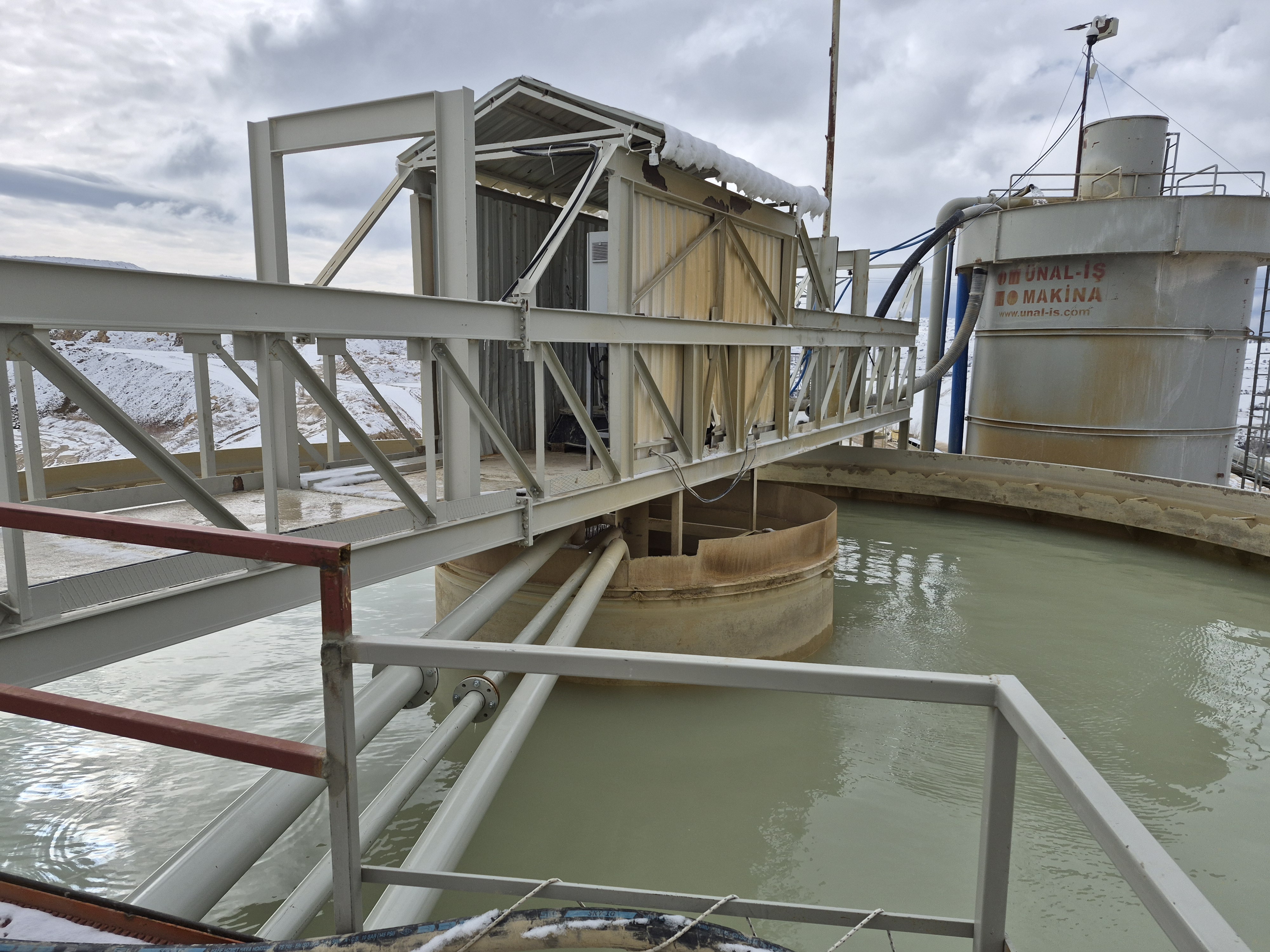

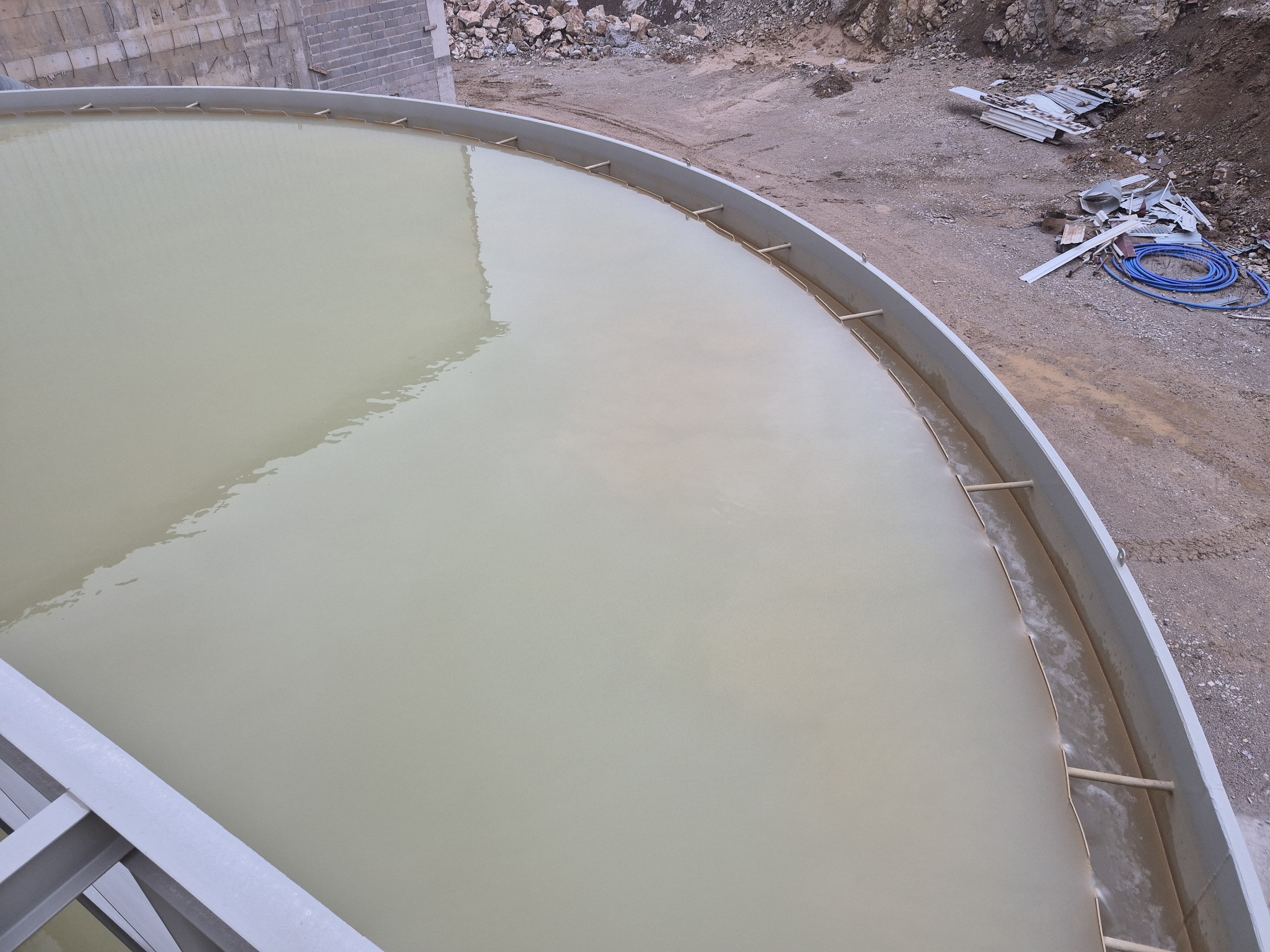

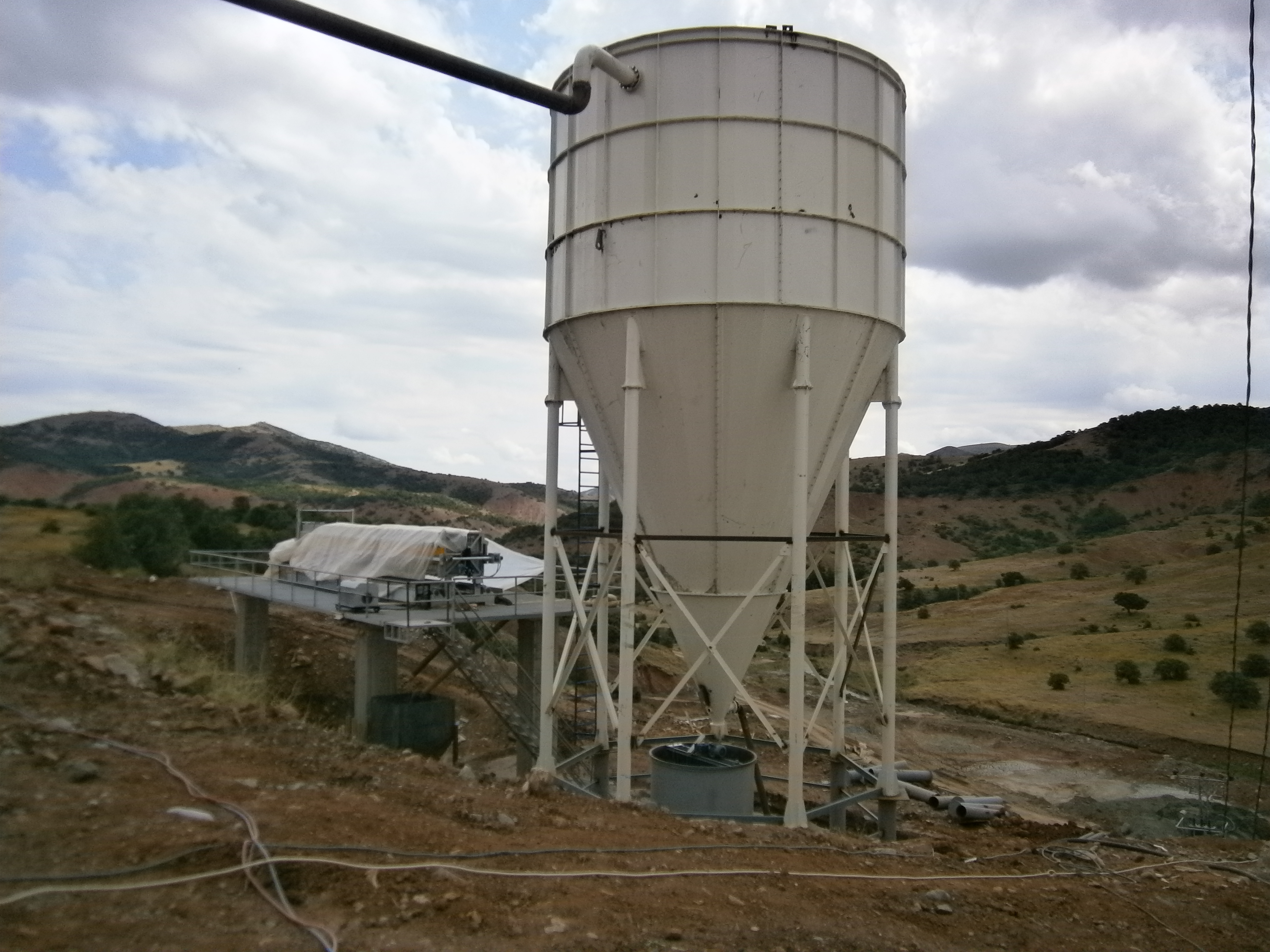

Project Gallery

Thickener Thickener Thickener Thickener Thickener
